TUYA WiFi home security

SKU: 11299 Category:

$11.12$150.88

Clear
Compare

Product Description


letter





TUYA WiFi home security alarm system/tuya wifi alarm system support smart automation function burglar alarm system compatible with Google and Alexa function

H4c0e04620ff84972974179a79a49fc0aE

Smart WiFi+GSM+GPRS Alarm System

This brand new system comes with latest technology developed ,to protect your properties by the most effective ways . It is based on WiFi+GSM+GPRS network by default, and if GSM network is unavailable in your country (you can consult this from your local network carrier ), you can choose our 3G alarm system or 4G alarm system.



Two Colors Options:

H70f719a4f139417cb66882cf7e87742fJ

Product Details:

H576c4bd8ea5c42e4824582d51a498a01B

H01e5ad1528fd4277b80063fc3efb8a4dZ

Smart Home Security Alarm System: Brand New Design to protect your home

This new system protects what matters most to you for 7*24 Hours. It is compatible with Tuya Smart Platform to realize Home Automation, even you can set various scenario to make it operate automatically.



Hc77d55da11fe4109b9981b18a4587f460

Voice Control The System

This system supports Amazon Alexa/Echo, Google Home, IFTTT, etc. You can send voice command to require the system , even you can require it by Apple Siri.

H2ccca73a41fc4eeba3c07a6b081f1a087

Device Sharing Between Family Members.

This system allows you to share the device with your Family members, without any extra setting, just send invitation via App to your Family member, when the invitation gets through, they will have the same rights with you to enjoy the system.

H4987c112b3e54ff09476eeaaafa52291i

Multi-language Available

Up to 11 different languages supported in this new system: English / Russian / Spanish / German / Polish / Chinese / Italian / French / Portuguese / Greek / Romanian; you can switch it freely by LCD display or via App. If your own language not included, please contact us and we can discuss to add.

Hb1ffde2b9a8841aeab7c0796c86d1cd0I

Scheduled Arm/Disarm

You can schedule the timing Arm/Disarm to make it work automatically, no need to arm/disarm the system every day by remotes or RFID tags or App. It has Exit Delay & Entry Delay to let you walk off or get back to home, to avoid the unnecessary false alarming.

H3c405d73a20745a89409410fe881c709d

Working Principle

This system has multi-way to make you get alert when Emergency happens. It can text SMS message to let you know what is happening right now, and make phone call to you so that you can monitor the system (it supports also two-way intercom), also your smartphone will get App notification if App installed & registered.

H7b6fd37f52a94d52bb39355d7cf48977Z

Extendable Accessory to meet all your need

This system supports up to 99 pcs different sensor /detector /accessory, and 10 pcs RFID tags & 10 pcs remote controls. Besides the PIR motion detector and Door sensor that comes with the alarm KIT, you can also choose to install Smoke detector, Gas detector, Water leakage sensor, wireless indoor or outdoor strobe siren, signal booster, panic button, door-bell, separate keypad, and so on.

H93a9f6fb4f3d4016baeb344fee0827112

Door/Window Status Reminding

This system will remind you if the door is unclosed. It will not be armed if door is unclosed, the LCD display will show this info, and meanwhile it will release sound to remind you of this.

Had7e018fd53b413c9814a2ce845b25dd0

5 Preset Phone Numbers for Emergency Contact

Totally 5 Emergency contact persons will get alert. This system will make phone call to the first phone number firstly , and if no answer, it will call the second phone number ….this system will call these 5 numbers by turns for 3 times. Meanwhile, SMS text message will be sent to these 5 numbers at same time.

H5fdee117bf37433ca60d170c801561eaP

Home Automation For Smart Living

Based on Tuya Smart technology, our system can connect with all other smart living items to realize Home Automation, such as indoor or outdoor wifi IP camera, wifi LED bulb, wifi Power Socket/Plug, Power Switch, Curtain, Air condition, wifi Door locks, TV box, TV remotes…etc. so our system is not just for intrusion alarming, it has integrated into Smart Home System.

Hb83b7288e3c644ccbde5aaa84707f4b77

Technical Specification:

Main Panel

  • Power Supply: Micro USB 110/220VAC to 5V, 1000mA Backup
  • Battery: 3.7V, 500mAh Rechargeable Lithium
  • Battery Consumption: <55mA@normal
  • Radio Frequency: 433Mhz (868Mhz Optional)
  • GSM Frequency: 850/900/1800/1900MHz
  • Wi-Fi: IEEE802.11b/g/n
  • Operation Temperature: 0~55°C



Remote Controls

  • Power Supply: DC 3V (CR2025 Lithium Battery x1)
  • Standby Current: <5uA
  • Alarm Current: <15mA
  • Transmitting Distance: <80m (Open Area and No Interference)
  • Radio Frequency: 433Mhz (868Mhz Optional)
  • Operation Temperature: 0~55°C



Door/Window Sensor

  • Power Supply: DC 3V (CR2032 Lithium Battery x1)
  • Standby Current:<8uA
  • Alarm Current: <15mA
  • Transmitting Distance: <80m (Open Area/No Interference)
  • Radio Frequency: 433Mhz (868Mhz Optional)
  • Operation Temperature: 0~55°C



Motion PIR Detector

  • Power Supply: 1.5V AA Battery x3
  • Standby Current:<15uA
  • Alarm Current: <25mA
  • Detection Scope:<12m/110°
  • Transmitting Distance: <80m (Open Area and No Interference)
  • Radio Frequency: 433Mhz (868Mhz Optional)
  • Operation Temperature: 0~55°C



RFID Tag

  • Chip:4100
  • Frequency: 125KHz
  • Read Distance:<2cm



Wireless Siren

  • Power Supply: Micro USB 110/220VAC to 5V, 1000mA
  • Backup Battery: 3.7V, 300mA Rechargeable Lithium Battery
  • Standby Current:<15mA
  • Alarm Current:<230mA
  • Volume:100dB
  • Radio Frequency: 433Mhz (868Mhz Optional)
  • Operation Temperature: 0~55°C



FAQ

Q: If without extra power supply, does it still work ?

A: Yes, it has backup battery to keep working if extra power failure .in this situation, wifi network doesn’t exist, but the system will work via GSM network, and text you message if extra power recovery.



Q: For SIM card ,should I delete the PIN code?

A: Definitely! You need to delete the PIN code before you insert SIM card into the panel. The PIN code can be deleted in your smartphone.



Q: Is it easy to install such a system?

A: Yes! this system is DIY (do it by yourself), no need extra tool or professional installer. You can finish all installations within few minutes, and all settings can be done by App.



Q: Where to download the App?

A: Search “Tuya Smart” on Apple Store or Google Play and download it,vand then register with your mobile phone number or your email address.



What’s included

Set A Package Content

  • 1 x Main Panel
  • 2 x Remote Controls
  • 1 x Wireless Door/Window Sensor
  • 1 x Wireless Motion PIR Detector
  • 2 x RFID Tags
  • 1 x Power Adapter
  • 1 x User Manual

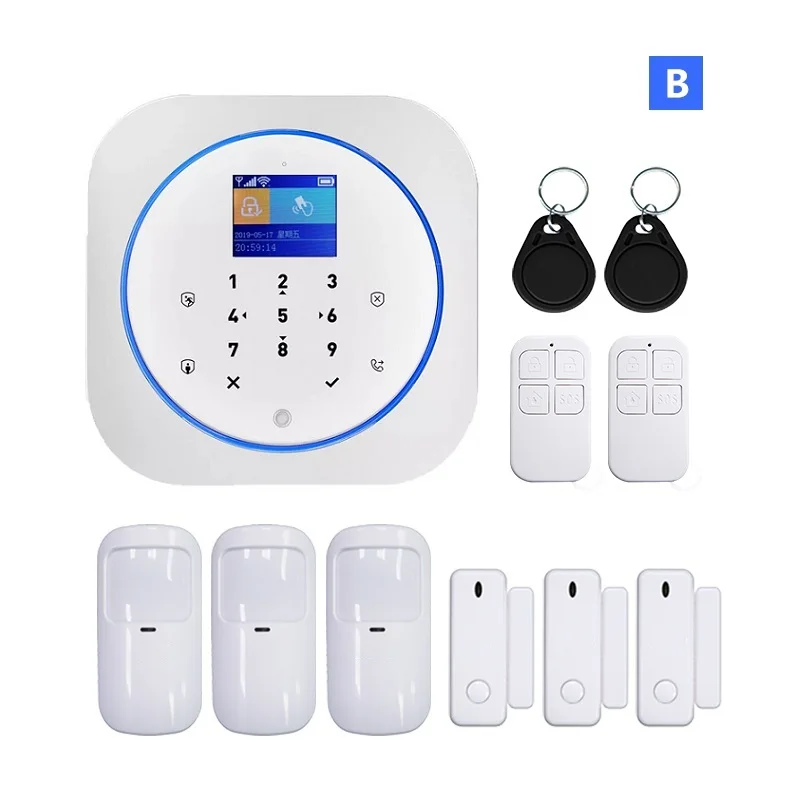

Set B Package Content

  • 1 x Main Panel
  • 2 x Remote Controls
  • 3 x Wireless Door/Window Sensor
  • 3 x Wireless Motion PIR Detector
  • 2 x RFID Tags
  • 1 x Power Adapter
  • 1 x User Manual



Set C Package Content

  • 1 x Main Panel
  • 2 x Remote Controls
  • 2 x Wireless Door/Window Sensor
  • 2 x Wireless Motion PIR Detector
  • 2 x RFID Tags
  • 1 x Wireless Smoke Detector
  • 1 x Power Adapter
  • 1 x User Manual



Set D Package Content

  • 1 x Main Panel
  • 1 x Indoor IP Camera
  • 2 x Remote Controls
  • 1 x Wireless Door/Window Sensor
  • 1 x Wireless Motion PIR Detector
  • 2 x RFID Tags
  • 1 x Power Adapter
  • 1 x User Manual



Set E Package Content

  • 1 x Main Panel
  • 2 x Remote Controls
  • 1 x Wireless Door/Window Sensor
  • 1 x Wireless Motion PIR Detector
  • 1 x Wireless Keypad
  • 2 x RFID Tags
  • 1 x Power Adapter
  • 1 x User Manual



Set F Package Content

  • 1 x Main Panel
  • 2 x Remote Controls
  • 1 x Wireless Door/Window Sensor
  • 1 x Wireless Motion PIR Detector
  • 1 x Wireless Strobe Siren (Plug&Play)
  • 2 x RFID Tags
  • 1 x Power Adapter
  • 1 x User Manual



Set G Package Content

  • 1 x Main Panel
  • 2 x Remote Controls
  • 1 x Wireless Door/Window Sensor
  • 1 x Wireless Motion PIR Detector
  • 1 x Power Socket (Plug&Play)
  • 2 x RFID Tags
  • 1 x Power Adapter
  • 1 x User Manual

A

B

C

D

E

F

G

HTB1Aw7DRXXXXXbqXFXXq6xXFXXXY

QQ截图20200505012724

1721-12042616293444





Weight 52.9109 oz
Dimensions 5.9055 × 5.9055 × 8.6614 in
Color

Black Panel Kit A, Black Panel Kit B, Black Panel Kit C, Black Panel Kit D, Black Panel Kit E, Black Panel Kit F, Black Panel Kit G, Door Window Sensor, PIR Motion Sensor, White Panel Kit A, White Panel Kit B, White Panel Kit C, White Panel Kit D, White Panel Kit E, White Panel Kit F, White Panel Kit G

Brand Name

None

Alarm Type

Apps Control

Video Interface

Yes

Connection Type

Wireless

Arming Type

APP

Kit Configuration

Door/Window Sensor

Model Number

BE-C6

Password Keyboard

Yes

Power

5V 1A

Output Number

5

Display

Yes

Zone Number

100
